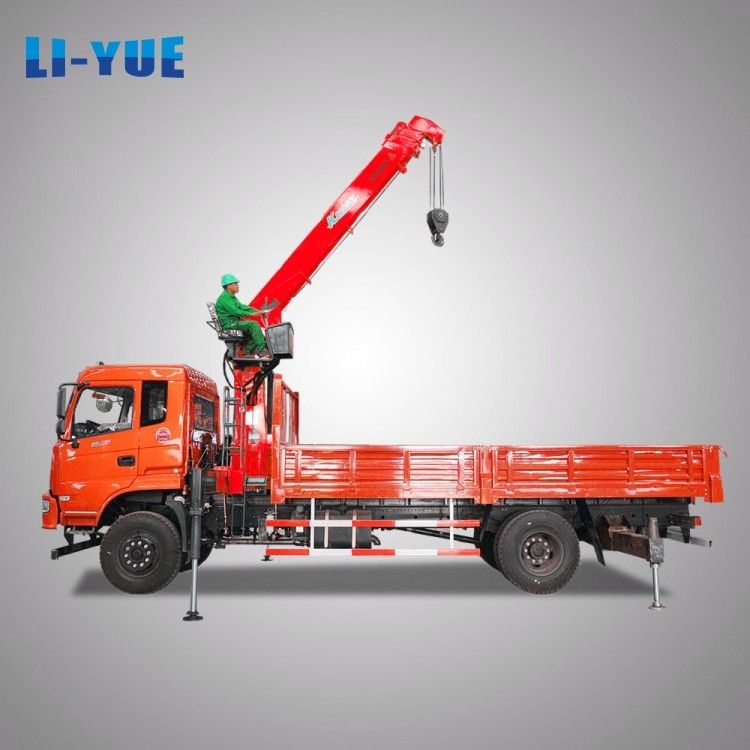

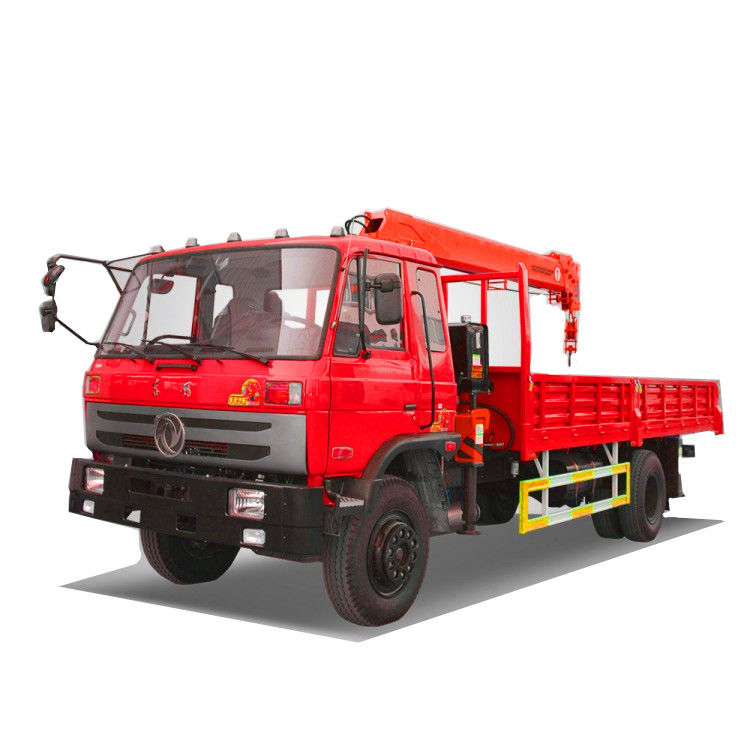

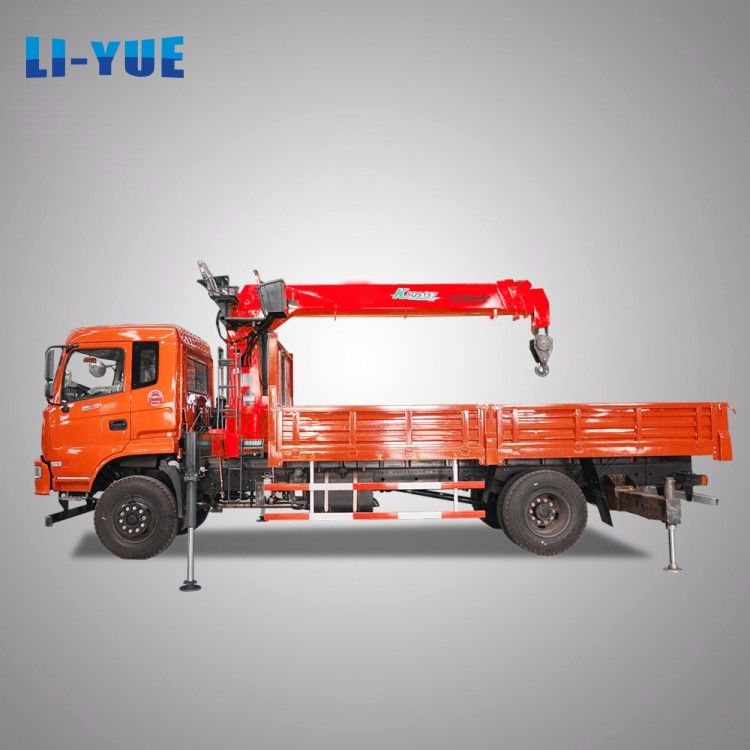

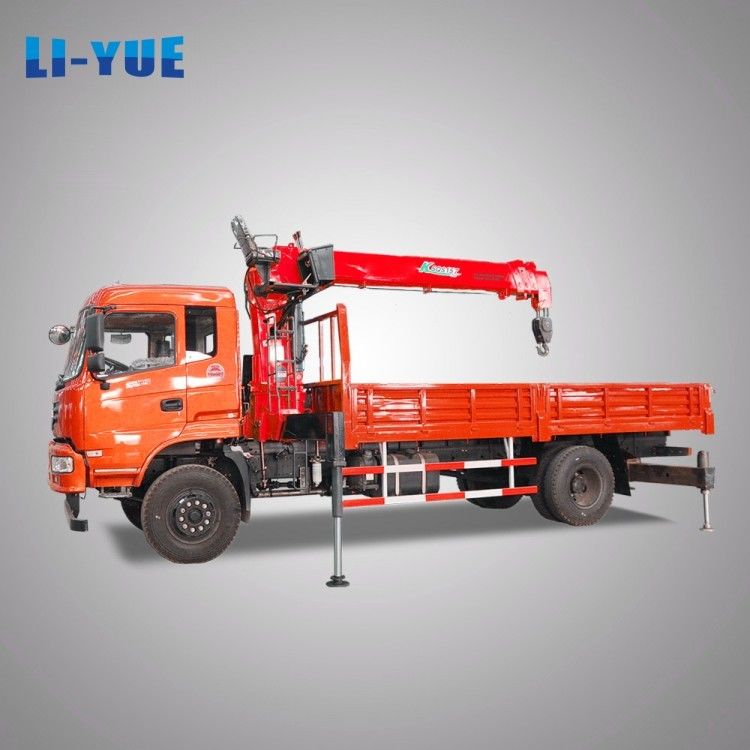

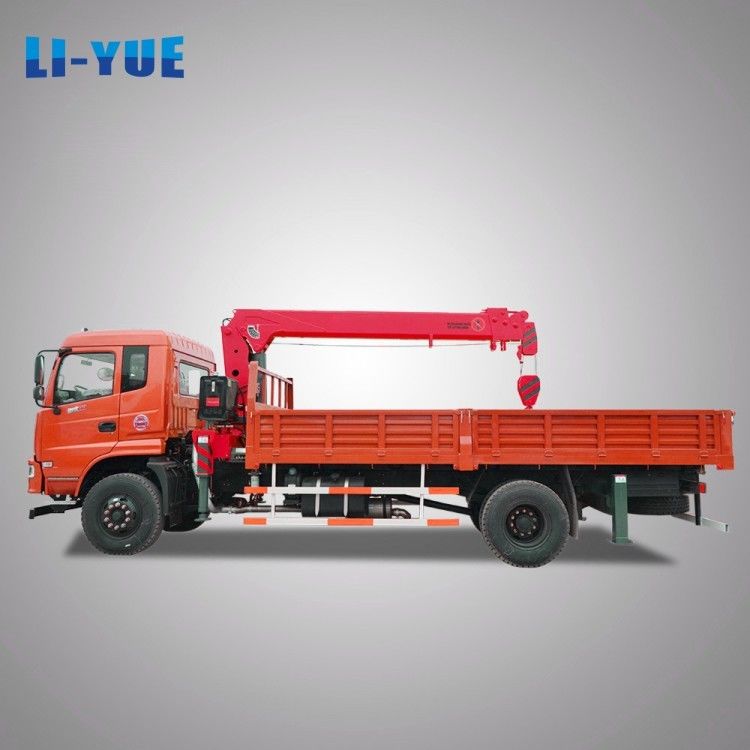

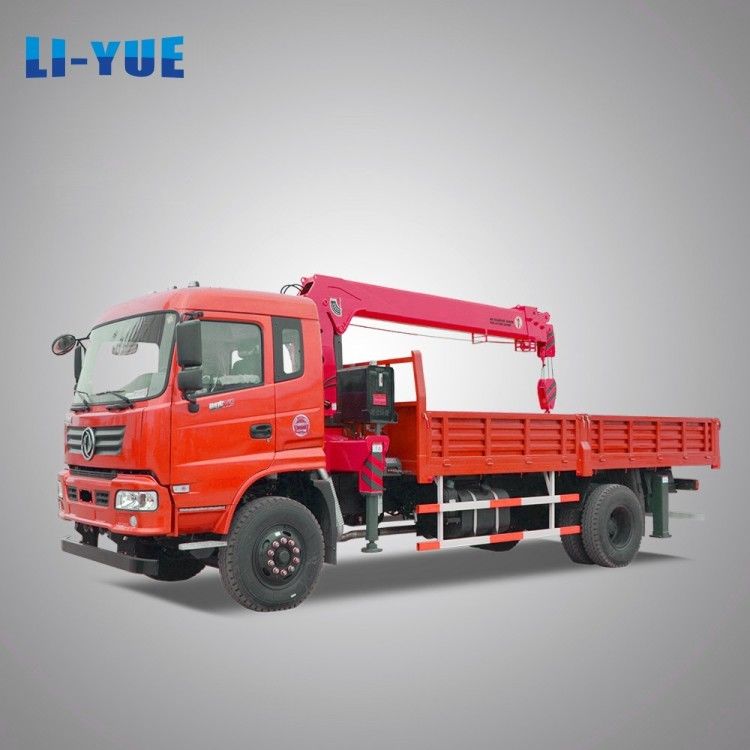

Hydraulic Straight Arm Electric 8 Ton Small Truck Mounted Crane With high Performance
| Project | Unit | Value | |
| Crane Dimension | Crane Model | － | SQ 8 |
| Max. Lifting Capacity | kg | 8,000 | |
| Max. Lifting Height | m | 18 | |
| Working Radius/ Span | m | 2.5-16.9 | |
| Rotation Angle | º | 360 | |
| Boom Raising Angle Scope | º | 0-75 | |
| Boom Sections | Piece | 5 | |
| Outrigger Quantity | Piece | 2 | |
| Outrigger Span (Fully Extended) | mm | 2280-5400 | |
| Crane Weight | kg | 3315 | |
| Hydraulic Tank Capacity | L | 140 | |
| Max. Flow Rate of Hydraulic Oil System | L/min | 50 | |
| Hydraulic System Rated Pressure | Mpa | 27 | |
| Installation Space | mm | 1200 | |
| Working Parameter | The Basic Boom Length | m | 4.5-16.9 |
| Max. Lifting Torque | T.m | 20 | |
| Max. Slewing Speed | r/ min | 2 | |
Famous Brand Hydraulic Parts for our Truck Crane
Prodution Progress
Company Information
Henan Liyue Machinery equipment Co., Ltd., located in Lankao County, Henan Province, is located in the middle of the Future Avenue of Industrial agglomeration area, is a trading and manufacturing combo.Established in 1980, our company covers an area of more than 66000 square meters and currently employs 320 people, including 30 professional and technical personnel, 15 senior technicians and 6 senior engineers. We have a large-scale cutting machine, bending machine, CNC cutting machine, copying cutting machine, plate rolling machine, square tube sewing machine, moving beam gantry milling machine, shot blasting machine and numerical control lathe and other equipments. Our company has launched 3T-25T truck cranes, truck mounted cranes and marine crane to fill the domestic blank market, and exported to more than 20 countries and regions such as South Africa and Angola market.We exported to more than a dozen countries and regions such as Thailand, Turkmenistan, Kazakhstan, Vietnam, Bhutan and so on. As the manufacturer, we accept OEM/ ODM orders.
